Smart pi EDC
Description

The Smart pi EDC is a partnership with EDC Acoustics to integrate EDC’s Plane Array™ technology which allows systems the ability to create 3D wave fronts.
Each speaker is capable of vertical and/or horizontal steering as well as customisable wave shaping, allowing re-configurable pattern control to suit any venue or area further increasing speech intelligibility in difficult acoustic environments.

Features

EDC Plane Array Technology
Digitally steerable via software
High directivity to minimise environmental noise spill and acoustic control
Weatherproof designed for outdoor use
Can be mounted horizontally or vertically
High SPL with onboard power amplifiers and DSP
Uses industry standard, Dante, OCA/AES70 on Fibre or Ethernet connections

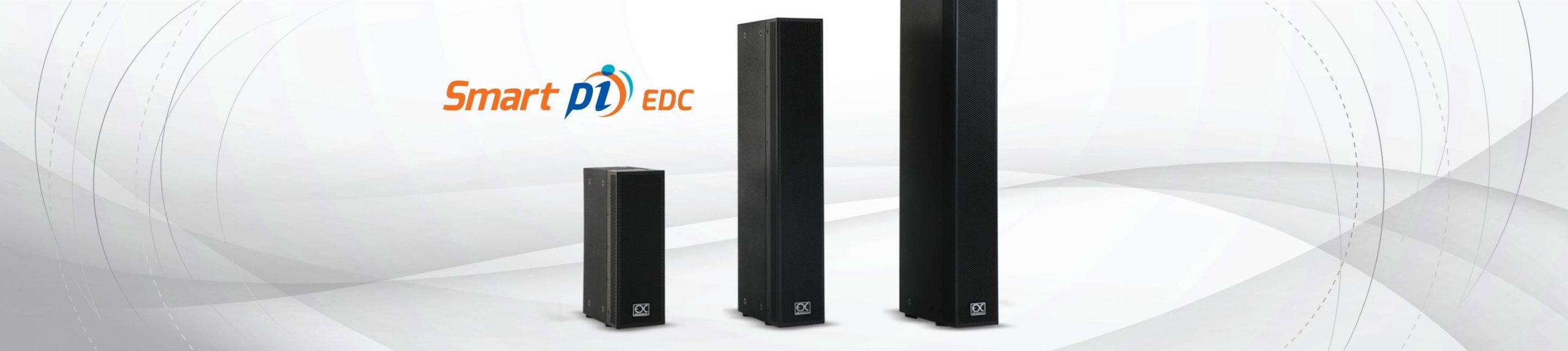

Three sizes available

  • http://www.smart-pi.info/wp-content/uploads/2020/12/CS-30_1.png
  • http://www.smart-pi.info/wp-content/uploads/2020/12/Column-Series-Speakers_6.png
CS-30

Specifications:
HF: 27x High Frequency Transducers
LF: 3x Low Frequency Transducers
HF Power: 27x 30W Amplifiers
LF Power: 3x 200W Amplifiers
Total Amplification: 1,410W
Frequency Response(0dB,-3dB): 100Hz-20kHz
Peak SPL: Configuration Dependent
Array-ability: Both Horizontal and Vertical
Arrayed Horizontal Dispersion: User Configurable (0 -120 degrees)
Arrayed Vertical Dispersion: User Configurable (0 -120 degrees)
Arrayed Pan Control: +60 to -60 degrees, 0.1 degree resolution
Arrayed Tilt Control: +60 to -60 degrees, 0.1 degree resolution
Other Control: Symmetrical and Non-Symmetrical 3-Dimensional Wavefront Capable
DSP Processing: Input Parametric EQ, Input Mixing, Input Dynamics, Output FIR Filters with Auto-Calculation, Output Delay, Output Muting, Output Levels, Output Mute
Control: OCA/AES70 on IP with RJ45 and/or SFP
Connections: Dante on RJ45 and/or SFP
Dimensions: 14cm (Wide), 43cm (Tall), 34cm (Deep)
Weight: 12kg
Mains Voltage: 110-255V AC or 24-48V DC
Power Consumption: 620VA
Options are Weatherproof, U Bracket, Custom Colors

CS-60

Specifications:
HF: 54x High Frequency Transducers
LF: 6x Low Frequency Transducers
HF Power: 54x 30W Amplifiers
LF Power: 6x 200W Amplifiers
Total Amplification: 2,820W
Frequency Response(0dB,-3dB): 100Hz-20kHz
Peak SPL: Configuration Dependent
Array-ability: Both Horizontal and Vertical
Arrayed Horizontal Dispersion: User Configurable (0 -120 degrees)
Arrayed Vertical Dispersion: User Configurable (0 -120 degrees)
Arrayed Pan Control: +60 to -60 degrees, 0.1 degree resolution
Arrayed Tilt Control: +60 to -60 degrees, 0.1 degree resolution
Other Control: Symmetrical and Non-Symmetrical 3-Dimensional Wavefront Capable
DSP Processing: Input Parametric EQ, Input Mixing, Input Dynamics, Output FIR Filters with Auto-Calculation, Output Delay, Output Muting, Output Levels, Output Mute
Control: OCA/AES70 on IP with RJ45 and/or SFP
Connections: Dante on RJ45 and/or SFP
Dimensions: 14cm (Wide), 86cm (Tall), 34cm (Deep)
Weight: 24kg
Mains Voltage: 110-255V AC or 24-48V DC
Power Consumption: 1,220VA
Options: Weatherproof, U Bracket, Custom Colors

CS-90

Specifications:
HF: 81x High Frequency Transducers
LF: 9x Low Frequency Transducers
HF Power: 81x 30W Amplifiers
LF Power: 9x 200W Amplifiers
Total Amplification: 4,230W
Frequency Response(0dB,-3dB): 100Hz-20kHz
Peak SPL: Configuration Dependent
Array-ability: Both Horizontal and Vertical
Arrayed Horizontal Dispersion: User Configurable (0 -120 degrees)
Arrayed Vertical Dispersion: User Configurable (0 -120 degrees)
Arrayed Pan Control: +60 to -6 degrees, 0.1 degree resolution
Arrayed Tilt Control: +60 to -60 degrees, 0.1 degree resolution
Other Control: Symmetrical and Non-Symmetrical 3-Dimensional Wavefront Capable
DSP Processing: Input Parametric EQ, Input Mixing, Input Dynamics, Output FIR Filters with Auto-Calculation, Output Delay, Output Muting, Output Levels, Output Mute
Control: OCA/AES70 on IP with RJ45 and/or SFPt
Connections: Dante on RJ45 and/or SFP
Dimensions: 14cm (Wide), 129cm (Tall), 34cm (Deep)
Weight: 36kg
Mains Voltage: 110-255V AC or 24-48V DC
Power Consumption: 1,220VA
Options: Weatherproof, U Bracket, Custom Colors
